WHY THE NEED FOR A DEHUMIDIFIER ?
Dehumidifiers are required wherever there is a need to lower the humidity level to prevent corrosion, mould growth and condensation or maintain a low humidity condition during manufacture, packaging or storing of hygroscopic products.METHODS OF DEHUMIDIFICATION
Dehumidification is possible using two possible principles, Condensation with refrigeration style dehumidifiers and Adsorption with desiccant dehumidifiers. Desiccant dehumidifiers perform exceptionally well when used in cooler climates, or when a low dew-point, deep drying or low humidity levels are required. Since desiccant dehumidifiers do not produce water, they will work effectively down to sub zero temperatures. Their operation is simplistic yet extremely effective and reliable. Air (Process Air) is drawn into the dehumidifier, where is passes over a wheel impregnated with Silica Gel. As the air passes over this wheel, any moisture present in the air, is absorbed into the Silica Gel wheel before leaving the dehumidifier as warm dry air. The Silica Gel wheel is continually, slowly rotating, typically at three revolutions per hour. As the wheel rotates a small portion passes through the regeneration segment. During this phase a second air stream (Regeneration Air) is heated to a high temperature before passing over the wheel. Any moisture present in the wheel is released into this air stream, this hot wet air is then exhausted outside the area being dried.
| Part Number | |
| 10520GR-GB | |

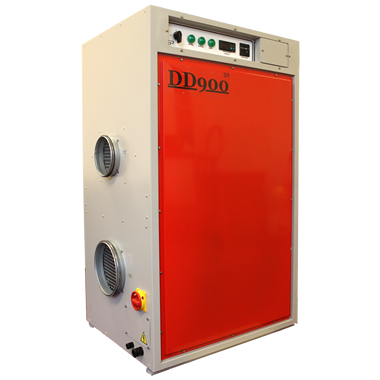

| DD900 | |
| Height (mm) | 1203 |
| Width (mm) | 580 |
| Depth (mm) | 718 |
| Weight(kgs) | 90 |
| Voltage | 415 |
| Phase | 3 |
| Frequency(Hz) | 50 |
| Power(kW) | 9.8 |
| Current(A) | 14 |
| Process Airflow - Dry Air (m3/hr) | 900 |
| Regen Airflow - Wet Air (m3/hr) | 250 |
| Process Air Duct Size (mm) | 203 |
| Regen Air Duct Size - Wet Air (mm) | 152 |
| Rotor Wheel Speed (rph) | 13.6 |
| Typical Extraction(l/d) | 135 |
| Min Operating Temp (°C) | -20 |
| Max OperatingTemp (°C) | 40 |
